The OSCL1223 Collimator Lens is for 120° Wide Field of View. A sub-lens is required.
Description

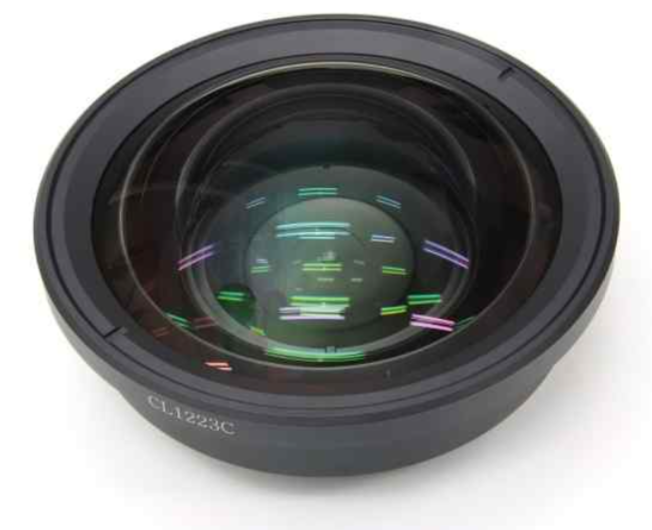

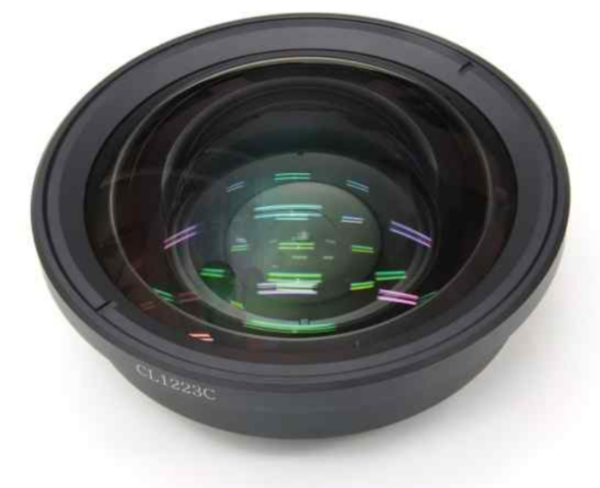

The OSCL1223C Collimator Lens for 120° Wide Field of View
- Requires Sub-lens
- EFL: 350.1mm
- Inspectable FOV of CCM: 120°
- Assemblyy Size: Ф 190mm X L 83.92mm
- Exit Pupil Size: Φ4.5mm (Distance from camera lens to CL)
- Exit Pupil Position: 23.0mm at Object Distance infinity
- Working Distance (from CL 1st lens R1 surface to chart): 248.2mm
- Chart size: Φ1225.2mm
|
Object Distance (mm) |
Sub Lens |
Working Distance |
Chart Size (Ф, mm) |
|
Infinity 10000 8000 4500 4000 3000 2500 2000 1900 1800 1700 1600 1500 1400 1300 1200 1100 1000 900 800 700 600 500 400 350 |
0.0D 0.0D 0.0D 0.0D 0.0D 0.5D 0.5D 0.5D 0.5D 0.5D 0.5D 0.5D 0.5D 0.5D 0.5D 1.0D 1.0D 1.0D 1.0D 1.0D 1.5D 1.5D 2.0D 2.5D 2.5D |
248.15 236.34 233.53 233.04 220.07 220.11 213.4 203.88 201.48 198.86 195.99 192.83 189.34 185.47 181.14 181.57 175.76 169.12 161.48 152.58 145.86 132.75 117.58 99.97 87.61 |
1225.2 1179.2 1168.2 1127.3 1116.1 1120.4 1094.1 1056.8 1047.4 1037.2 1025.9 1013.6 999.9 984.7 967.7 971.5 948.7 922.6 892.6 857.7 832.6 781.1 727.2 659.7 610.5 |
