The OSCL736C Collimator Lens is for 70° Field of View or less.
Description

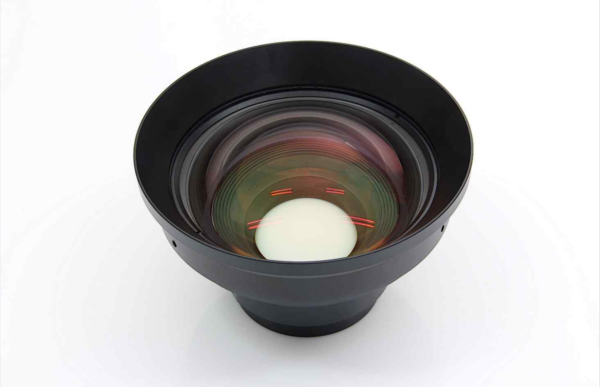

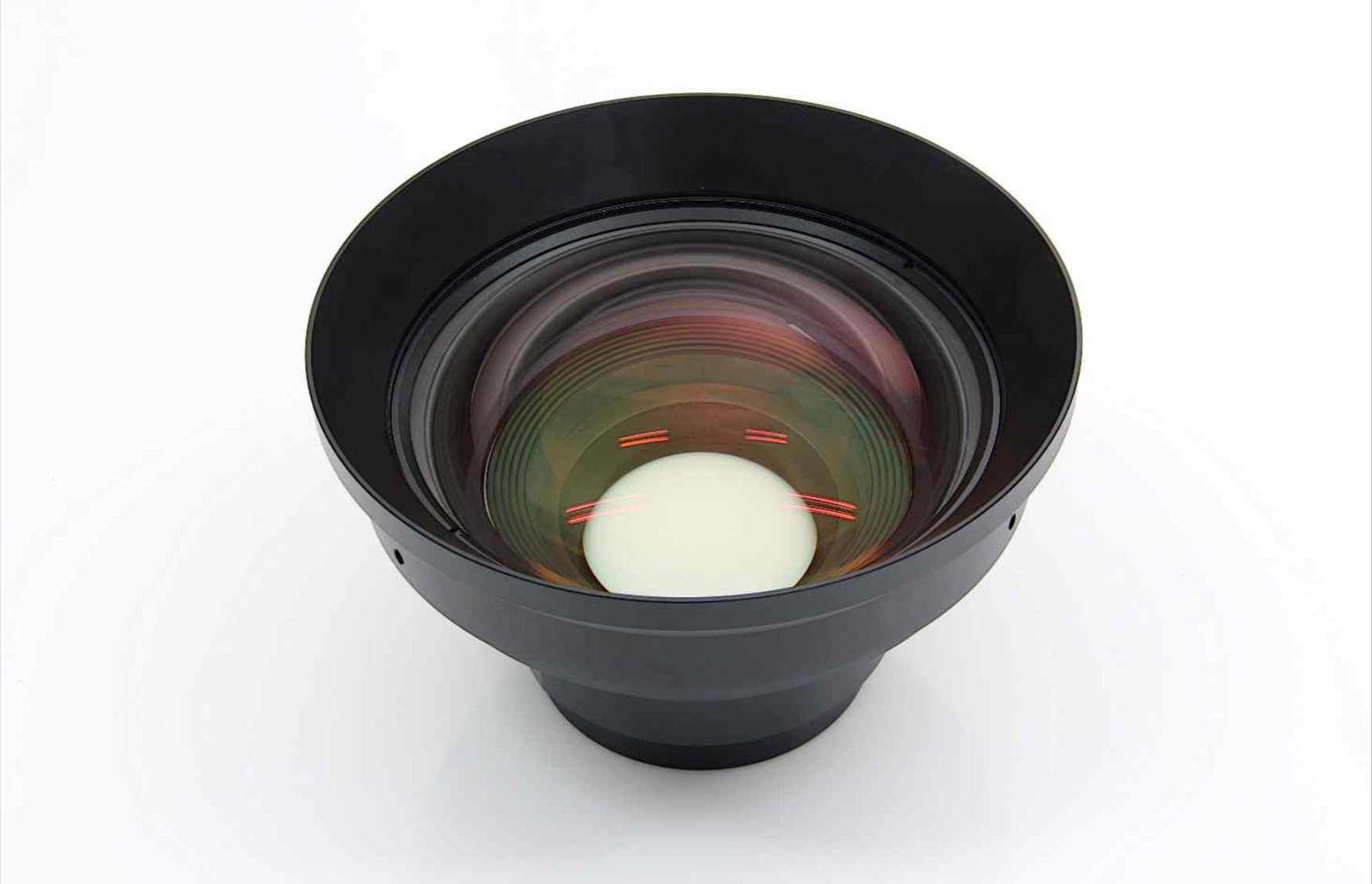

The OSCL736C Collimator Lens for 70° Field of View or less.
- Lens Composition: 5 Glass Lenses ( 2 HRI Glass )
- EFL: 415.1mm
- Inspectable FOV of CCM: 70 degrees
- Inspectable Resolution of CCM: ~ 20Mega Camera Lens
- Ass’y Size: Ф 190.8mm X L 128mm , 3.48kg
- Exit Pupil Size: Φ15.0mm
- Exit Pupil Position: 35.6mm (from vertex C/L to CCM)
- Working Distance (from C/L 1st Lens R1 surface to chart):
263.5mm at Object Distance Infinity
193.5mm at Object Distance 2.0m
145.5mm at Object Distance 1.0m
|
Object Distance (mm) |
Working Distance |
Chart Size (Ф, mm) |
|
Infinity 50000 30000 10000 5000 4500 4000 3500 3000 2500 2000 1900 1800 1700 1600 1500 1400 1300 1200 1100 1000 900 800 700 600 500 450 400 |
263.5 260.1 257.8 247.0 231.9 228.7 224.9 220.0 213.7 205.3 193.5 190.5 187.3 183.7 179.9 175.6 170.9 165.6 159.7 153.1 145.5 136.9 126.8 115.0 101.0 84.1 74.3 63.3 |
586.4 581.1 577.6 560.7 537.1 532.1 526.1 518.4 508.6 495.5 477.0 472.4 467.3 461.8 455.8 449.1 441.7 433.5 424.3 413.9 402.1 388.5 372.8 354.4 332.6 306.2 290.8 273.6 |
